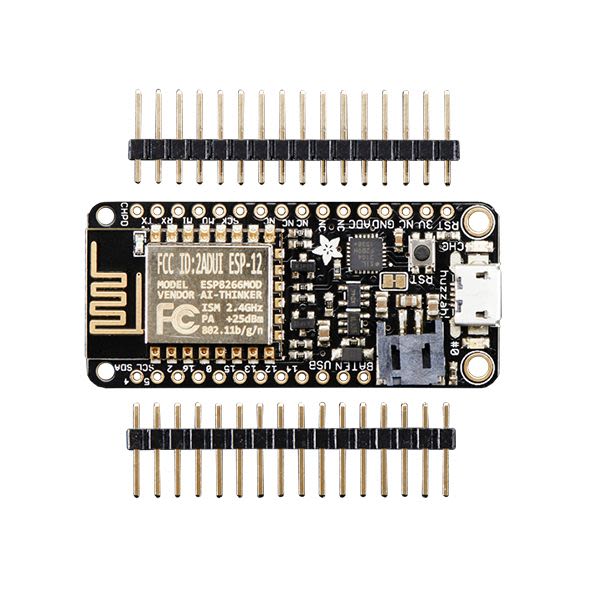

Feather HUZZAH ESP8266

Setup Your Environment

  • Install the Arduino IDE (Integrated development environment). This is where You can download it for Mac OS X, Windows and Linux here.

Detailed instructions can be found below:

If you are completely unfamiliar with the Arduino IDE, watch this video here to give you a better understanding of how it works.

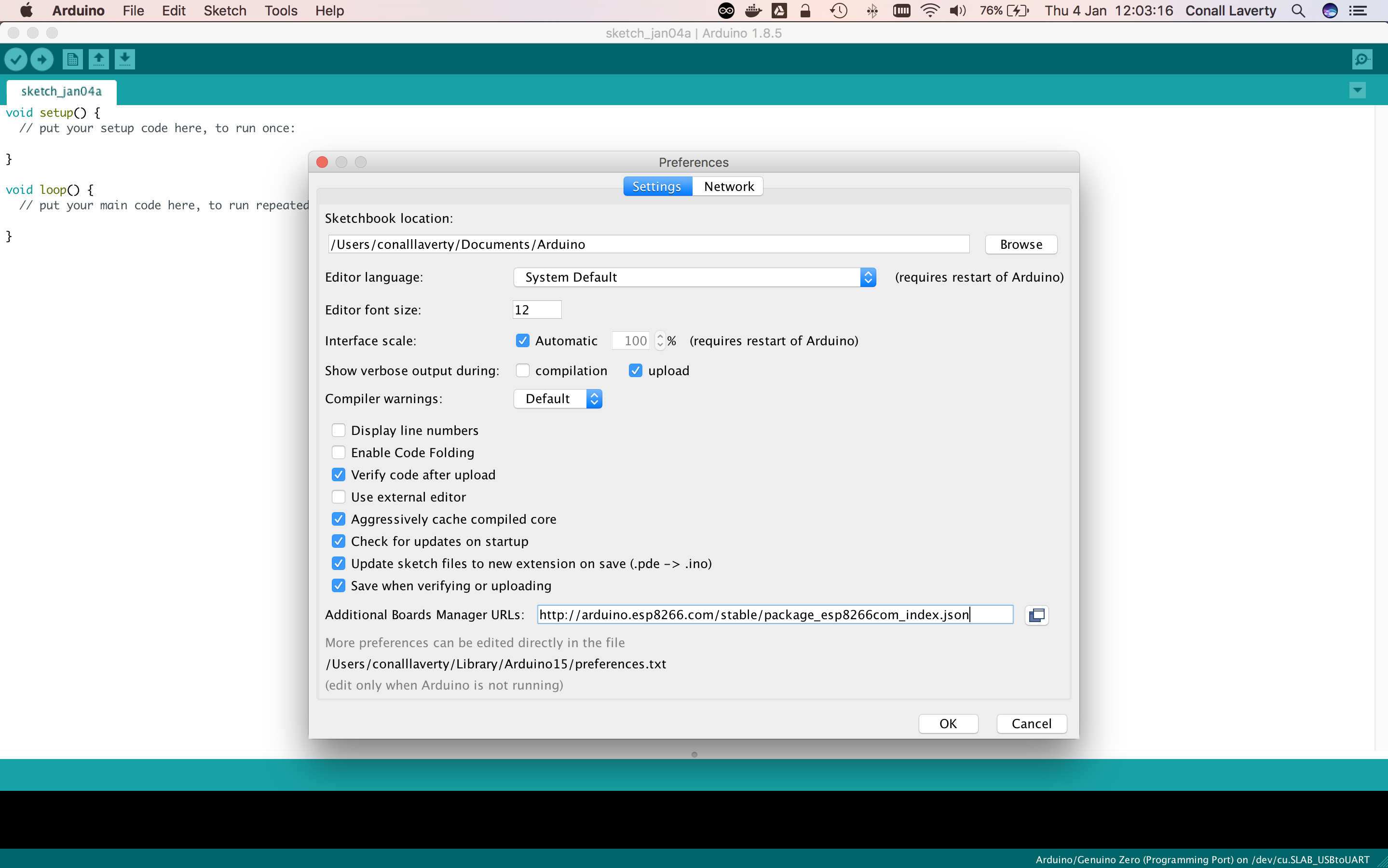

  • Start the Arduino application and open Preferences
  • Enter http://arduino.esp8266.com/stable/package_esp8266com_index.json into the Additional Board Manager URLs. If you need more than one, they can be separated with commas

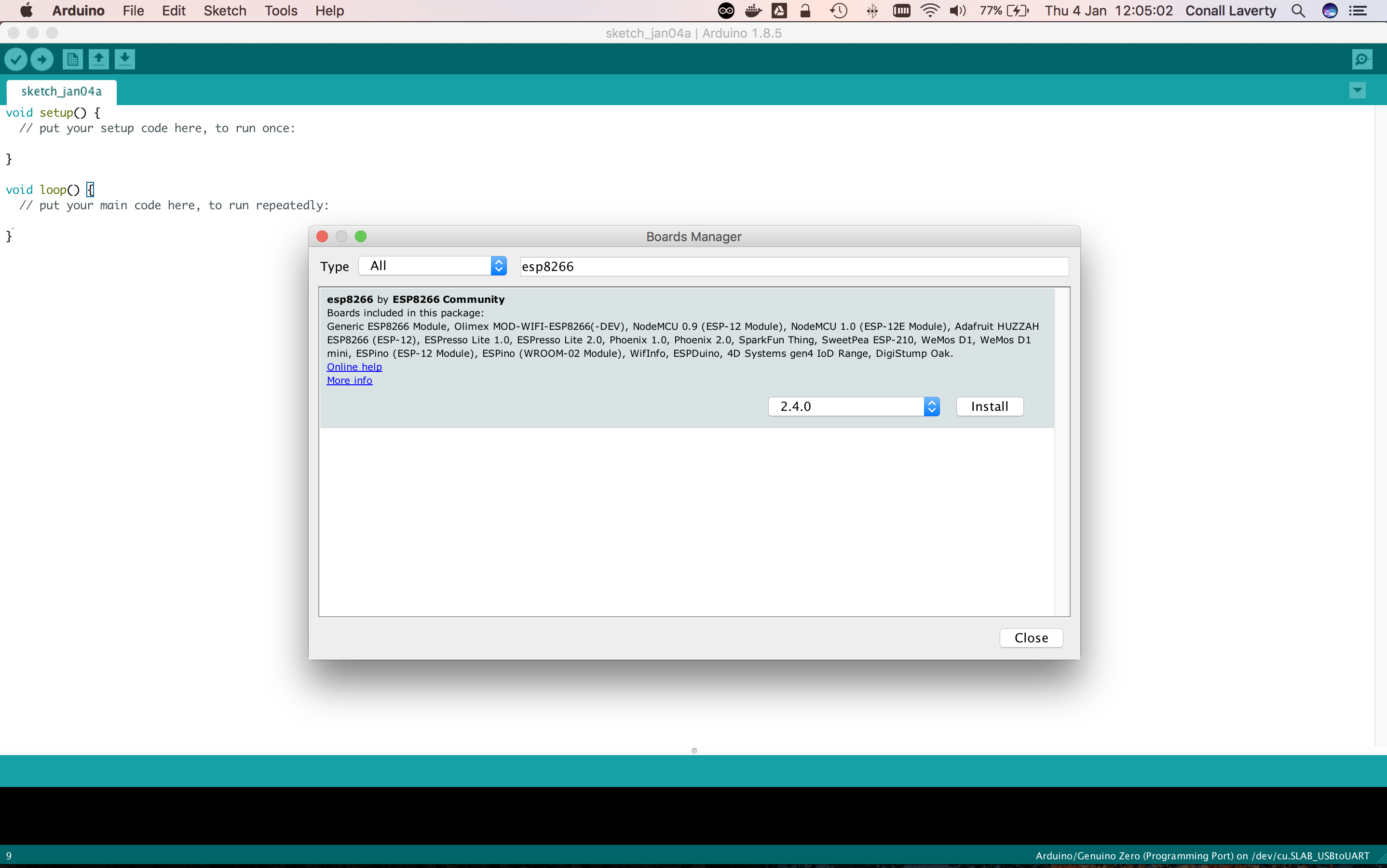

  • Go to Tools > Board > Boards Manager
  • Search for esp8266. When found, click Install
  • Select your ESP8266 board type by going to Tools > Board, then choosing your type. For this example, you can use NodeMCU 1.0 (ESP-12E Module)
  • Check that Upload Speed is set to 115200
  • Select the correct port for the board

For the ESP 8266, the port names tend to have unusual names, e.g:     On Mac OS: /dev/tty.usb.modem8232 or /dev/cu.SLAB_USB_toUART     On Windows: Com4 or Com3     On Linux /dev/ttyUSB0 or /dev/ttyACM0

If your port is not showing up, you need to install USB to UART Bridge VCP drivers. To do so, go here, then download and install the drivers for your operating system. After installing the drivers, restart the Arduino IDE.

Note for Mac users

You may need to install the driver twice for it to work, as the first install will just remove the existing driver.

Charge-only USB cables

Another cause of the port not showing up could be the USB cable - make sure that the cable you're using is not a charge-only cable, and that it isn't faulty.

Create the Sketch

  • Click on File > New to create a new Sketch
  • Copy and paste the publish event example code below. You can also view it on GitHub here. In that directly you will see how to publish both Events and Locations
C
Copy

Replace the values of the following variables:

  • your-ssid - with your WiFi network name.
  • your-password - with your WiFi network password.
  • your-device-secret-key with your device secret key from the Wia Dashboard (the one that begins with d_sk).
  • Go to Sketch > Upload to send it to your ESP8266.

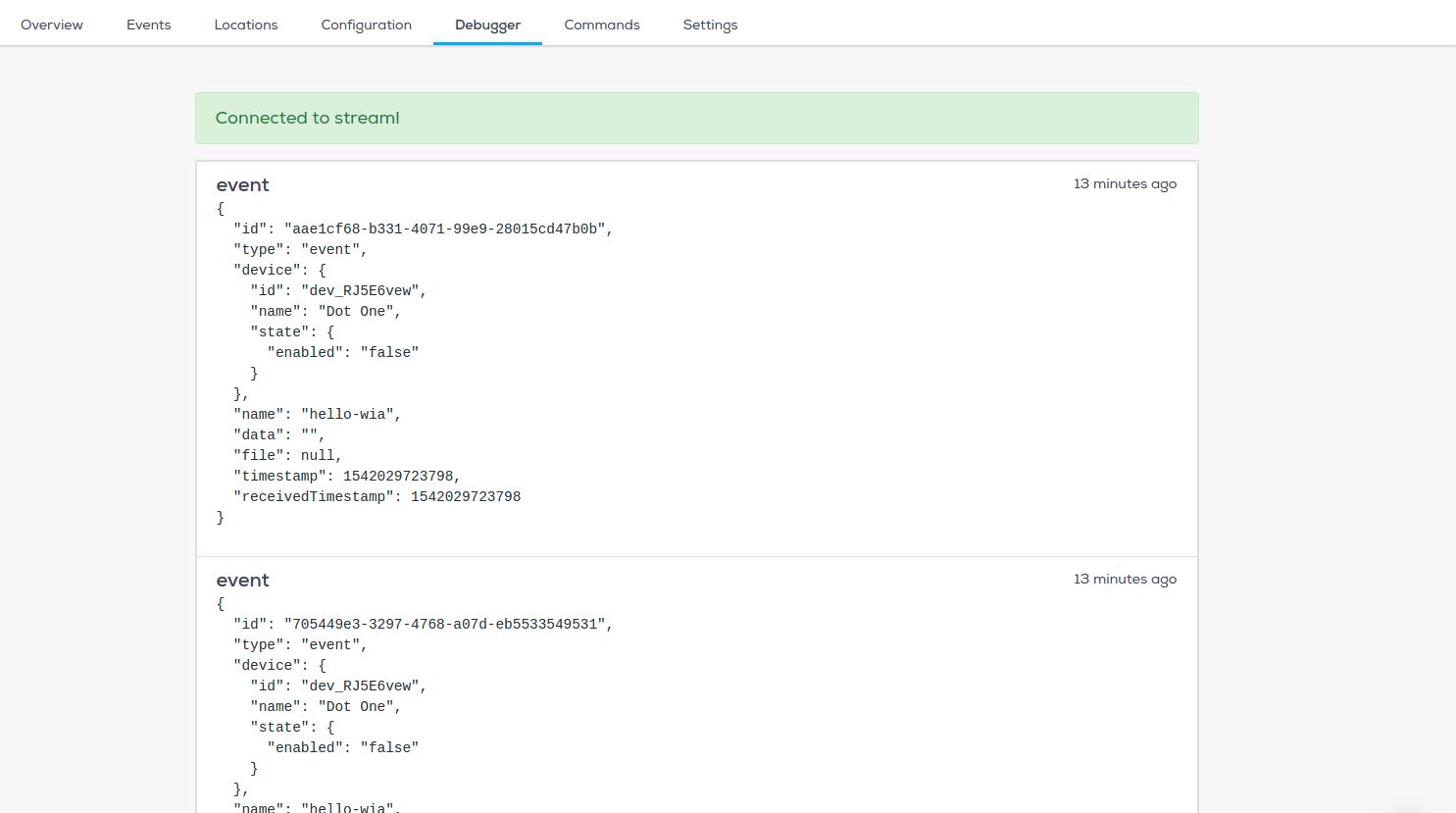

Now go to your device in the Wia dashboard and you should see the data appearing in the debugger.

Common errors

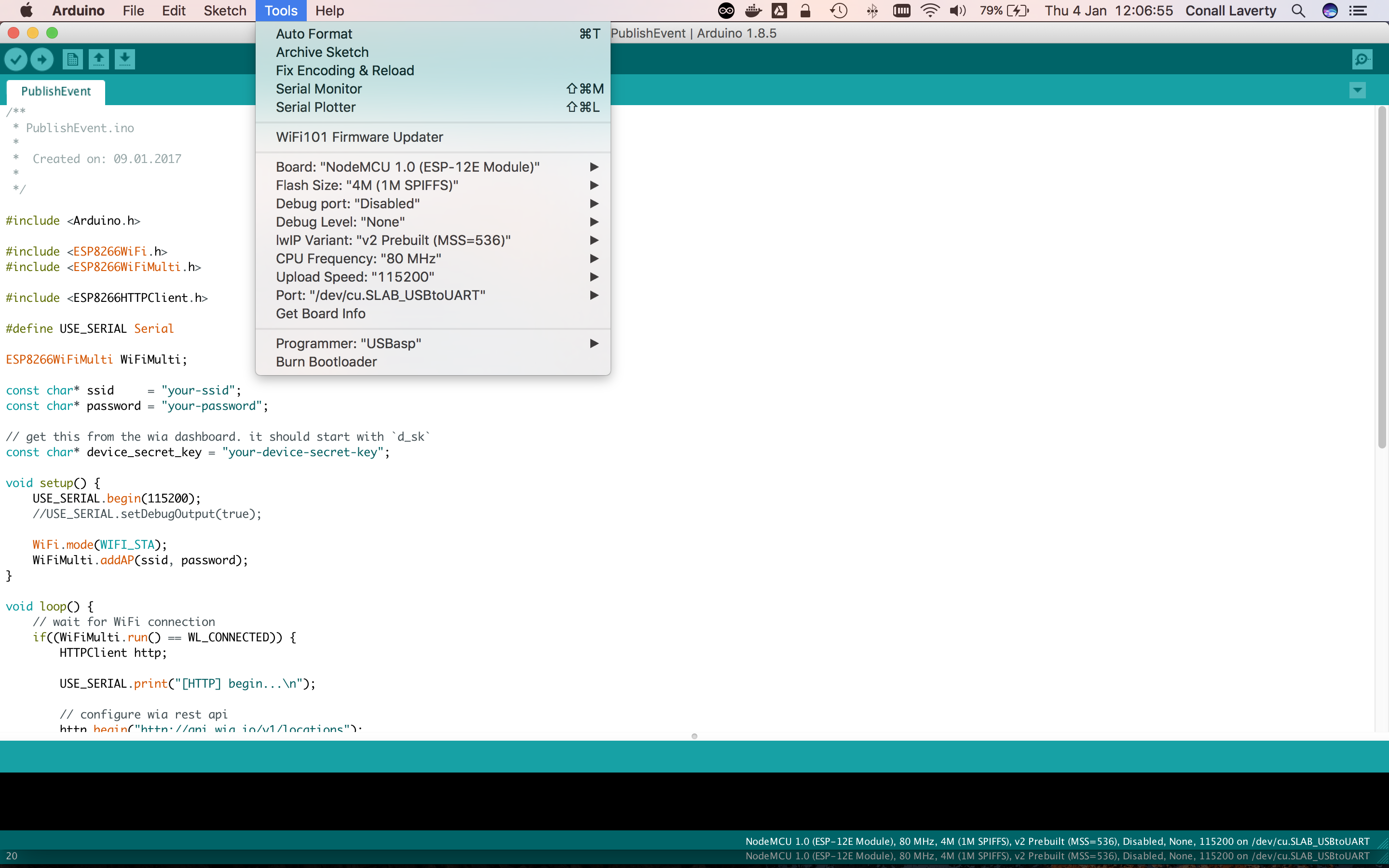

If you encounter an error like the one denoted in the image below, check if your board and port are correctly set in the Tools menu
