MessageBird

Start Setting Up Integration

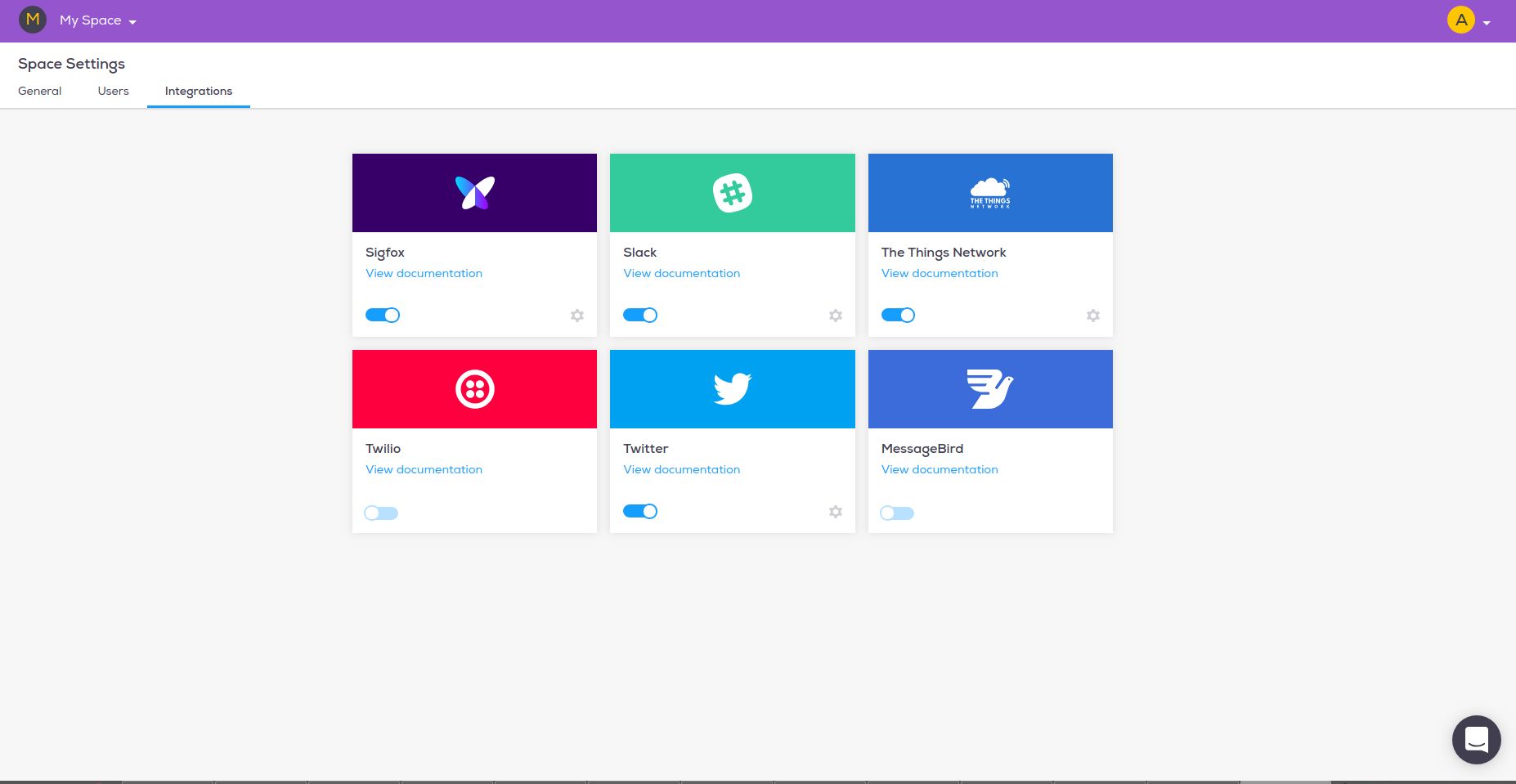

In your Space, select Devices from the left sidebar. Then, select Settings from the top menu Scroll down to find Integrations and click on the blue toggle button to start the integration.

Turn on MessageBird to see the keys you require to use the MessageBird integration.

Get Your MessageBird access key

If you don't already have a MessageBird account, click here to set one up for free

• Once signed up, you'll be redirected to the console page

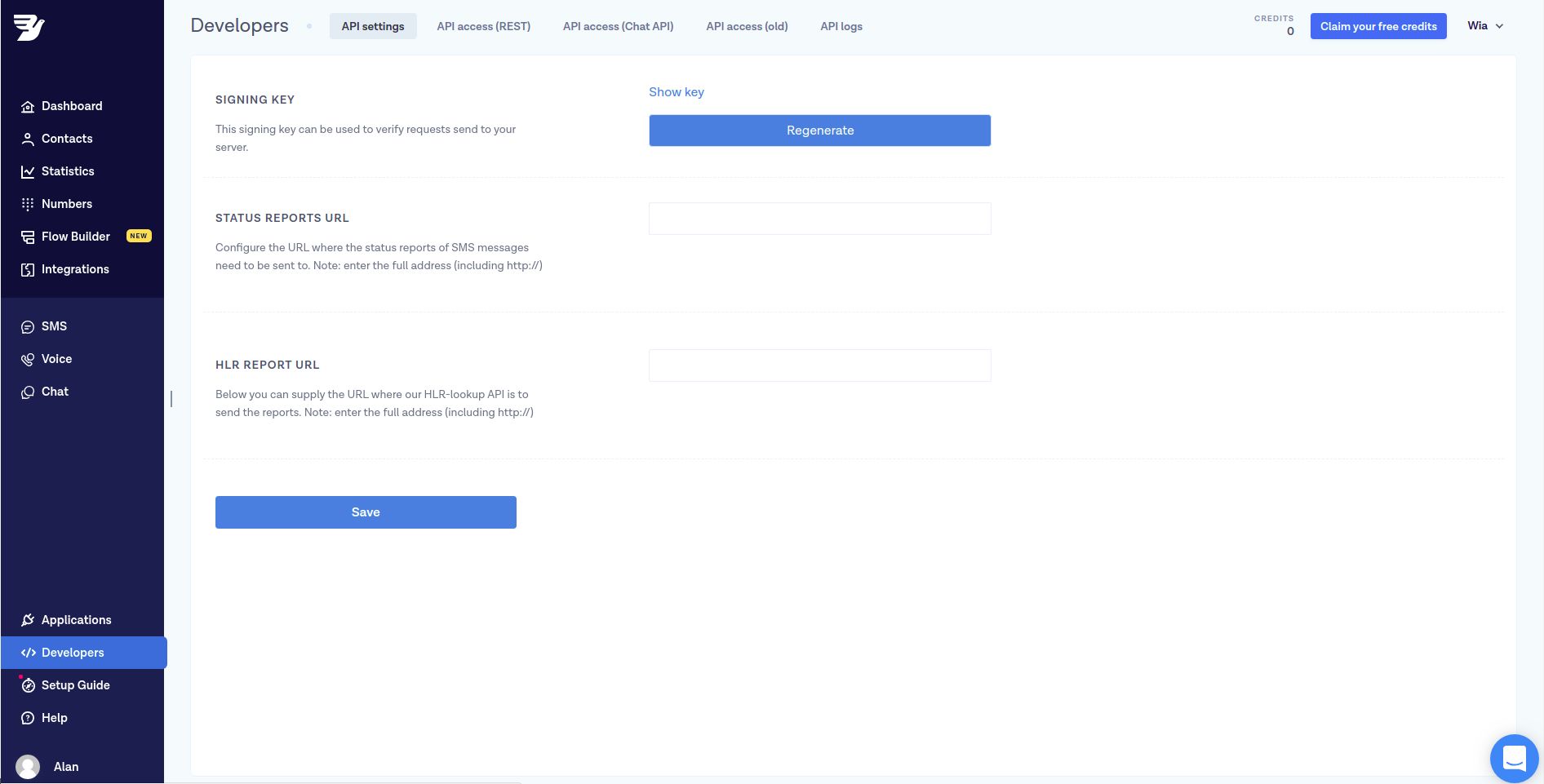

• To get an access key, click on the Developers section on the lower end of the left menu bar

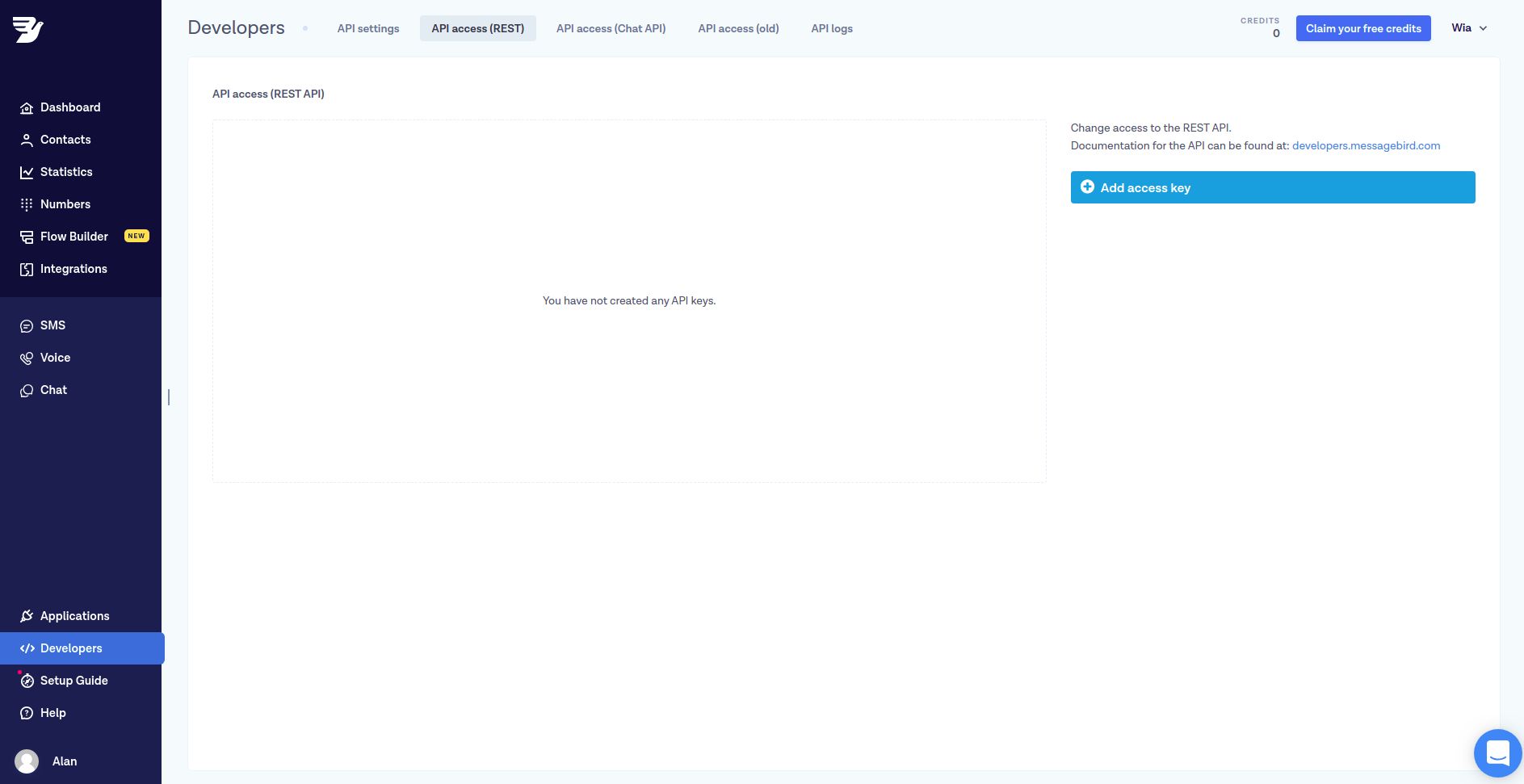

• From there, click on the `API access (REST) tab
• Click on the blue Add access key button

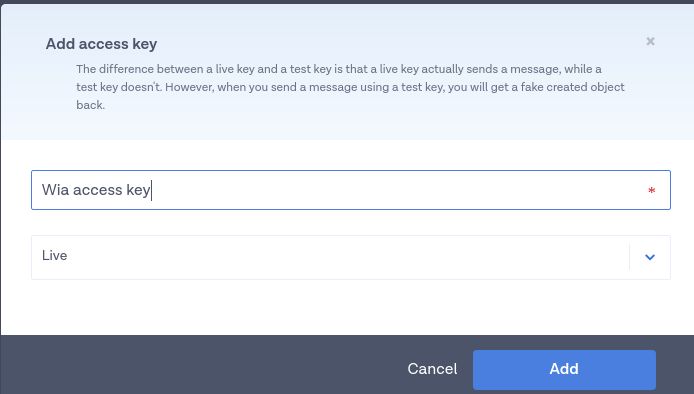

• Enter a description for your access key
• Chose live in order to send real texts and voicemails

• Click show key and copy to copy the access key to your clipboard.

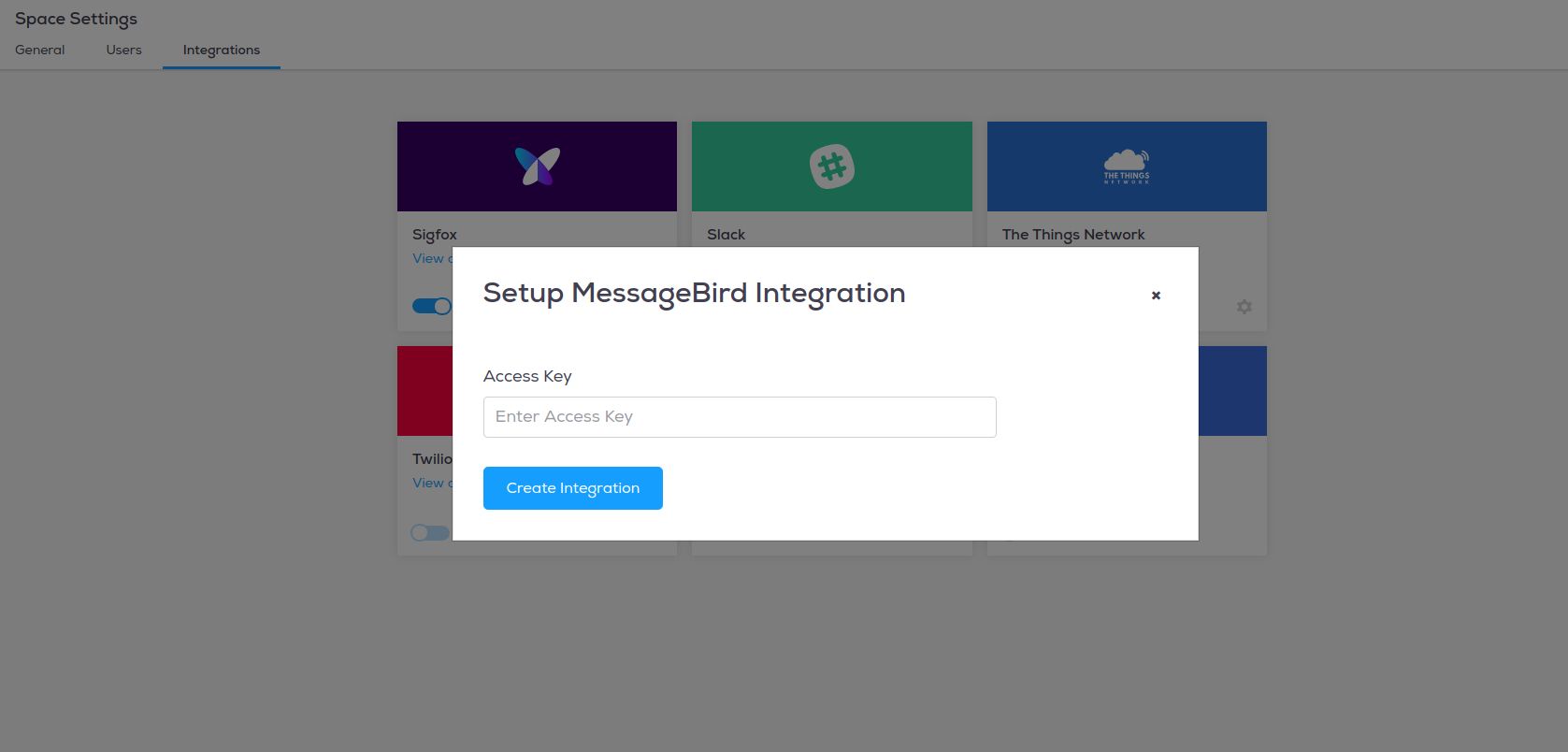

• Back in the Wia dashboard, paste the copied access key and click Create Integration.

Create a Flow

• In the Wia dashboard, go to Flows (Flow icon in left hand menu bar) and click create Flow
• Enter a name for your Flow

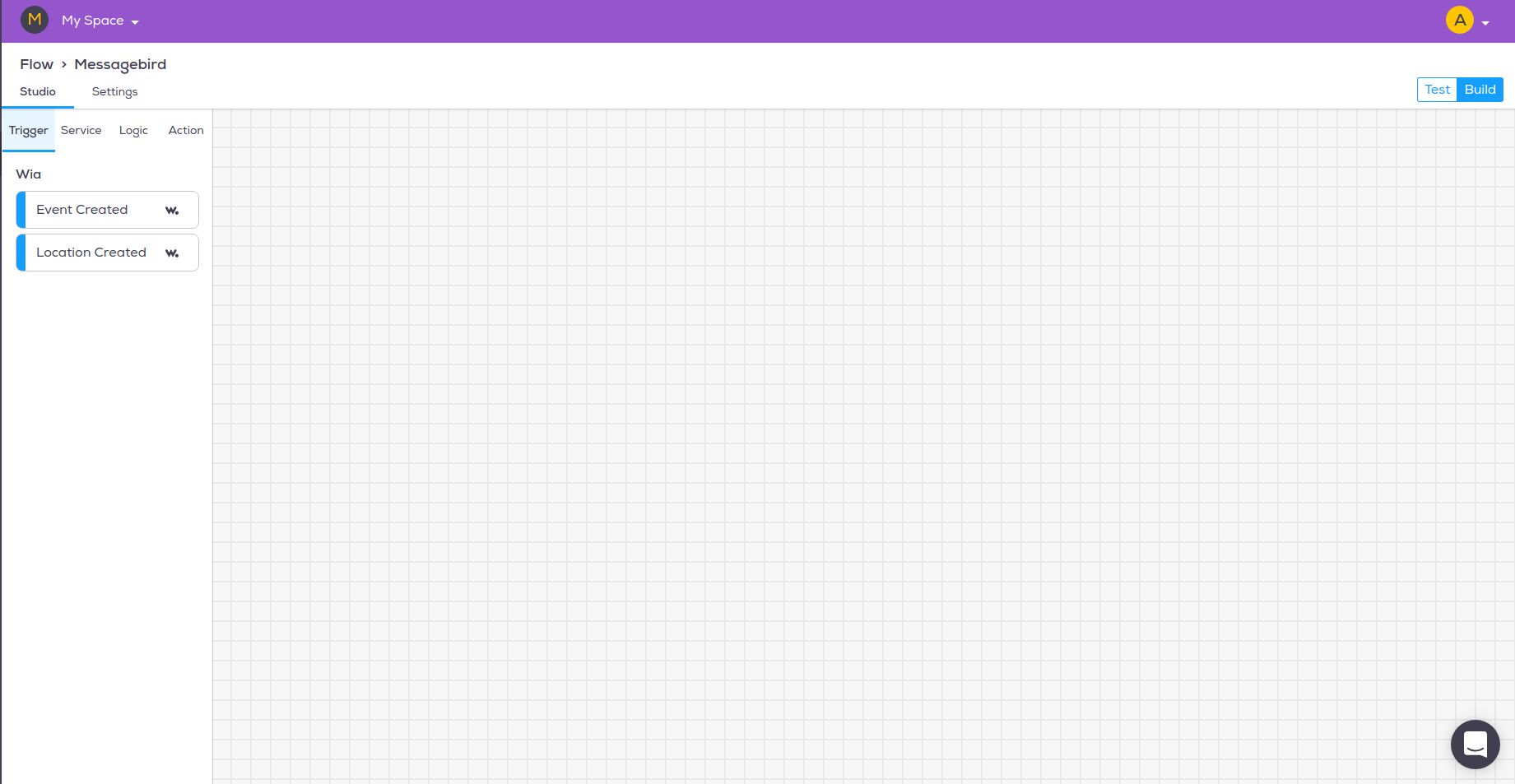

• You will then be redirected to the Flow Builder

Add a Trigger Node

• In the Flow Studio, drag over an Event Created trigger node from the panel on the left

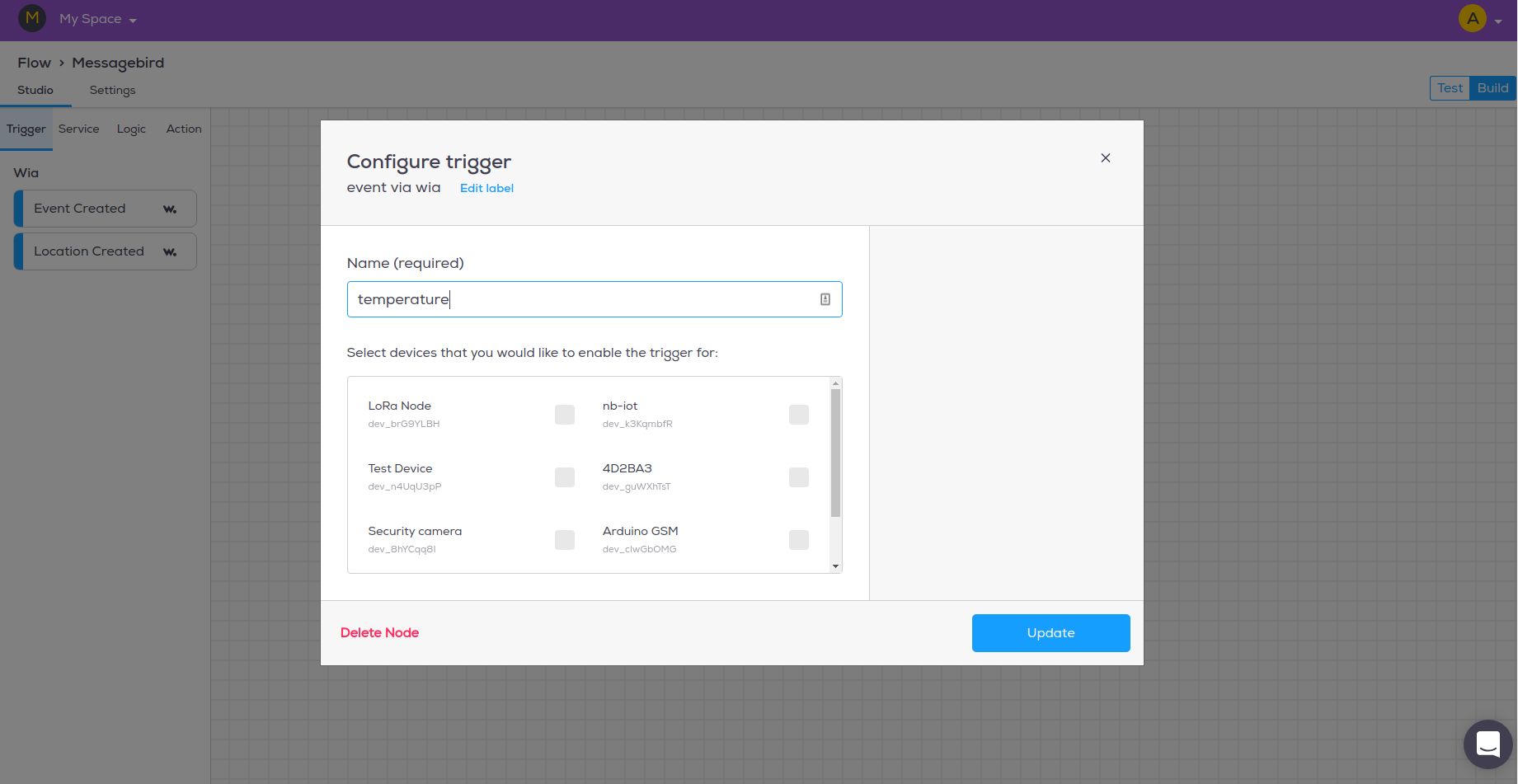

• Select the node, enter temperature as the name of the Event in the panel on the right
• Select from on of your Devices and click Update

Add an Action Node

• Drag over a Send SMS Message action node from the MessageBird section in the panel on the left
• Select the node, then on the panel on the right, do the following:
• Include an Originator (Your number or Name)
• Enter the phone numbers (NOTE: enter the country code and have no spaces i.e. +14568893405)
• Enter your Body message. I'm going to set mine as Temperature is ${input.body.data}. This takes the temperature data from the Event we are going to send. You can see more variables by clicking the show variables panel link
• Click Update to save your changes

Test the Flow

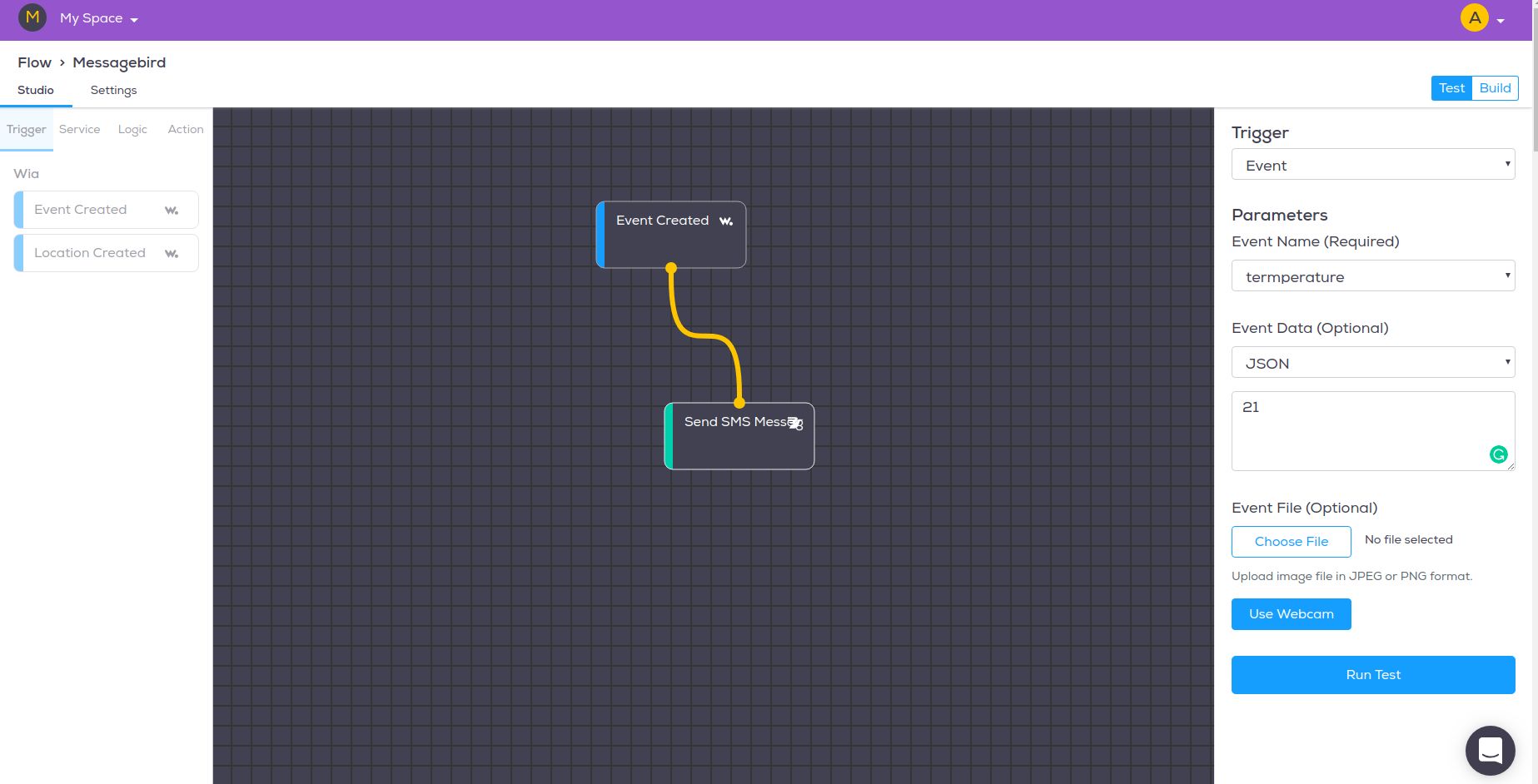

• Click on Test in the upper right-hand corner of the Flow
• Enter temperature as the parameter
• Click on JSON as the Event data
• Enter a temperature
• Click on Run Test
